Application:

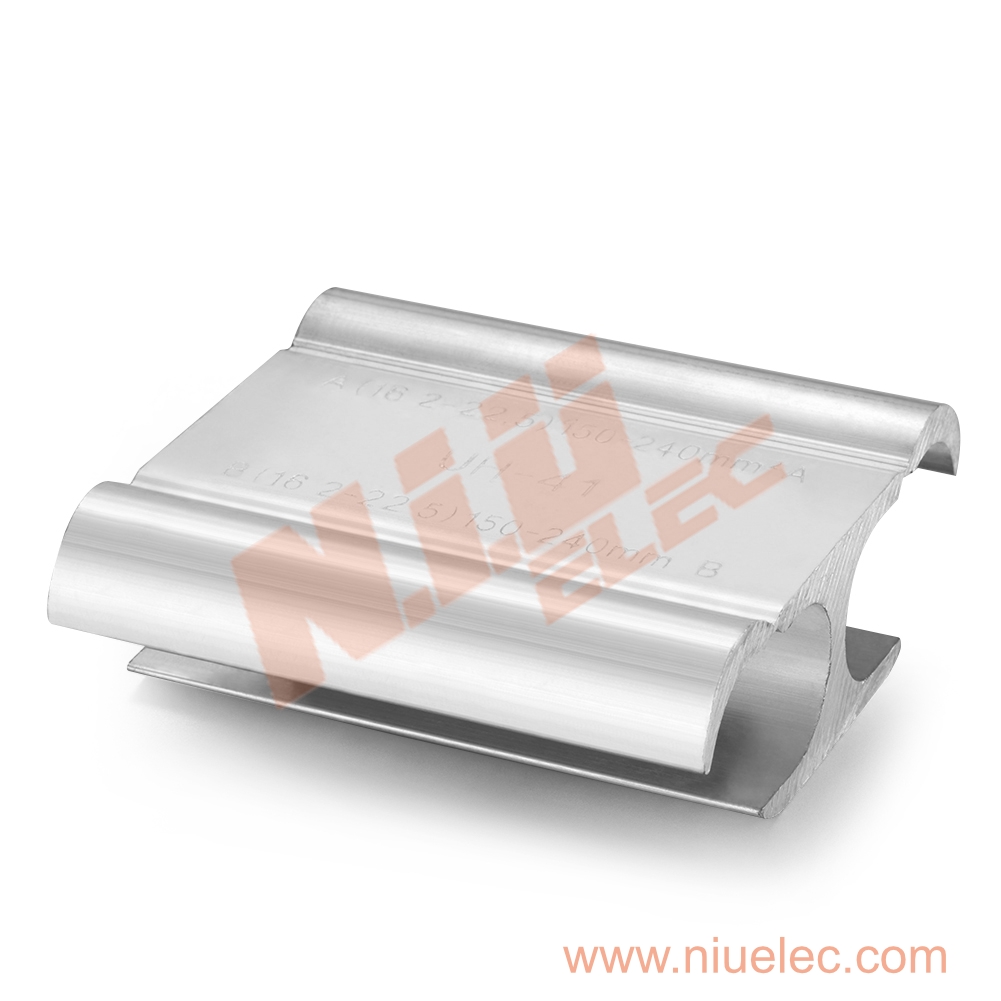

The AS-H Type Aluminum Connector is suitable for branching identical cross-sections and no need to split the main conductor.
Features:
1. Connector can be gripped in tool and slipped over line for easier and faster installation.
2. Massive aluminum design minimizes corrosion due to galvanic corrosion.
3. Constrains conductors while installer completes crimp.
4. Simplifies installation can reduce installed cost.
5. Permanent inspect ability of installed connectors to insure consistently reliable and dependable connection.
|

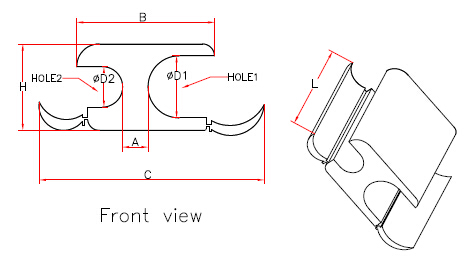

Item No. |
Hole1 |
D1 |
Hole2 |
D2 |
A | B | C | H | L | Weight(g) |
|
AS-H 1 |
16-35 |
4.8-8.2 |
16-35 |
4.8-8.2 |
7.1 | 24.3 | 41 | 15 | 38.3 | 30 |
|
AS-H 2 |
50-95 |
8.3-14.6 |
16-50 |
4.8-8.6 |
13 | 36.6 | 60 | 22.5 | 48.3 | 72 |
|
AS-H 3 |
50-95 |
10.0-14.6 |
50-95 |
10.0-14.6 |
5.4 | 36.4 | 63 | 22.3 | 60.5 | 73.7 |
|
AS-H 4 |
95-240 |
13.0-22.4 |
16-70 |
4.8-11.4 |
14.3 | 50.5 | 80.4 | 30 | 60.5 | 151.3 |
|
AS-H 5 |
95-240 |
13.0-22.4 |
70-120 |
11.6-16.0 |
9.4 | 50.0 | 83.5 | 32 | 60 | 159.1 |
|
AS-H 6 |
150-240 |
16.2-22.4 |
150-240 |
16.2-22.4 |
5.1 | 50.5 | 90.6 | 30.3 | 90 | 193.3 |
