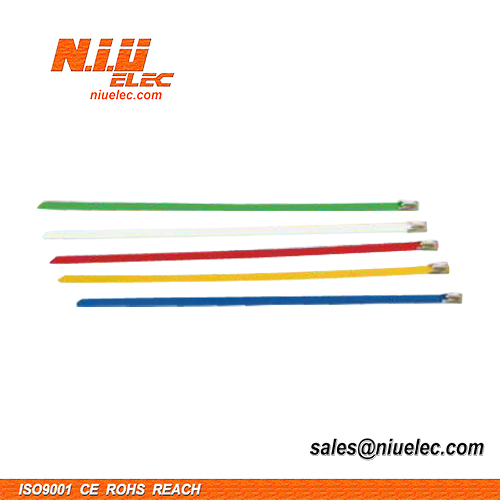

Coated ball-lock stainless steel cable tie

Name: Coated ball-lock stainless steel cable tie
Brand: N.I.U ELECTRIC GROUP CO., LTD
Availability: InStock
Rating: 5 (1 reviews)

INQUIRY PDF Format

Description

Features:
1.Strong ball lock mechanism with low insertion force.

2.Standard widths: 4.6mm, 7.9mm, 12.0mm are suitable for most applications indoor and out door. 16.0mm,19.0mm wide cable ties for heavy duty applications.

3.Made in 300 series stainless steel, which provides great corrosion resistance and tensile strength.

4. Applied in binding cable, signs, labels, pipes etc.

4.6MM WIDE PVC COATED

Item No.	Material	Width		Thickness		Length		Max Bundle Diameter
Item No.	Material	In	mm	In	mm	mm	In	In	mm
CBCT-4-150	SS304 SS316	0.18	4.6	0.016	0.40	5.9	150	1.4	35
CBCT-4-200	SS304 SS316	0.18	4.6	0.016	0.40	7.9	200	2.0	50
CBCT-4-250	SS304 SS316	0.18	4.6	0.016	0.40	9.8	250	2.6	65
CBCT-4-300	SS304 SS316	0.18	4.6	0.016	0.40	11.8	300	3.1	80
CBCT-4-350	SS304 SS316	0.18	4.6	0.016	0.40	13.8	350	3.7	95
CBCT-4-400	SS304 SS316	0.18	4.6	0.016	0.40	15.7	400	4.3	110
CBCT-4-450	SS304 SS316	0.18	4.6	0.016	0.40	17.7	450	4.9	125
CBCT-4-500	SS304 SS316	0.18	4.6	0.016	0.40	19.7	500	5.5	140
CBCT-4-550	SS304 SS316	0.18	4.6	0.016	0.40	21.7	550	6.3	160
CBCT-4-600	SS304 SS316	0.18	4.6	0.016	0.40	23.6	600	6.7	170
CBCT-4-650	SS304 SS316	0.18	4.6	0.016	0.40	25.6	650	7.7	195
CBCT-4-700	SS304 SS316	0.18	4.6	0.016	0.40	27.9	700	8.3	210
CBCT-4-750	SS304 SS316	0.18	4.6	0.016	0.40	29.5	750	8.9	225
CBCT-4-800	SS304 SS316	0.18	4.6	0.016	0.40	31.5	800	9.4	240
CBCT-4-850	SS304 SS316	0.18	4.6	0.010	0.40	33.5	850	10.1	258
CBCT-4-900	SS304 SS316	0.18	4.6	0.010	0.40	35.4	900	10.6	270
CBCT-4-950	SS304 SS316	0.18	4.6	0.010	0.40	37.4	950	11.4	290
CBCT-4-1000	SS304 SS316	0.18	4.6	0.010	0.40	39.4	1000	11.8	300

7.9MM WIDE PVC COATED

Item No.	Material	Width		Thickness		Length		Max Bundle Diameter
Item No.	Material	In	mm	In	mm	mm	In	In	mm
CBCT-7-150	SS304 SS316	0.31	7.9	0.016	0.40	5.9	150	1.4	35
CBCT-7-200	SS304 SS316	0.31	7.9	0.016	0.40	7.9	200	2.0	50
CBCT-7-250	SS304 SS316	0.31	7.9	0.016	0.40	9.8	250	2.6	65
CBCT-7-300	SS304 SS316	0.31	7.9	0.016	0.40	11.8	300	3.1	80
CBCT-7-350	SS304 SS316	0.31	7.9	0.016	0.40	13.8	350	3.7	95
CBCT-7-400	SS304 SS316	0.31	7.9	0.016	0.40	15.7	400	4.3	110
CBCT-7-450	SS304 SS316	0.31	7.9	0.016	0.40	17.7	450	4.9	125
CBCT-7-500	SS304 SS316	0.31	7.9	0.016	0.40	19.7	500	5.5	140
CBCT-7-550	SS304 SS316	0.31	7.9	0.016	0.40	21.7	550	6.3	160
CBCT-7-600	SS304 SS316	0.31	7.9	0.016	0.40	23.6	600	6.7	170
CBCT-7-650	SS304 SS316	0.31	7.9	0.016	0.40	25.6	650	7.7	195
CBCT-7-700	SS304 SS316	0.31	7.9	0.016	0.40	27.9	700	8.3	210
CBCT-7-750	SS304 SS316	0.31	7.9	0.016	0.40	29.5	750	8.9	225
CBCT-7-800	SS304 SS316	0.31	7.9	0.016	0.40	31.5	800	9.4	240
CBCT-7-850	SS304 SS316	0.31	7.9	0.016	0.40	33.5	850	10.1	258
CBCT-7-900	SS304 SS316	0.31	7.9	0.016	0.40	35.4	900	10.6	270
CBCT-7-950	SS304 SS316	0.31	7.9	0.016	0.40	37.4	950	11.4	290
CBCT-7-1000	SS304 SS316	0.31	7.9	0.016	0.40	39.4	1000	11.8	300

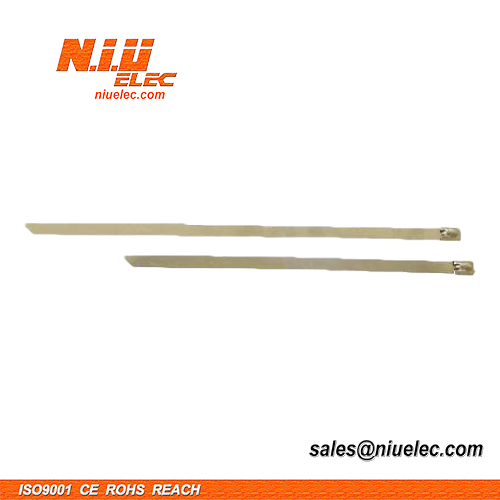

Ball-lock stainless steel cable tie

4.6MM WIDE UNCOATED

Item No.	Material	Width		Thickness		Length		Max Bundle Diameter
Item No.	Material	In	mm	In	mm	mm	In	In	mm
BCT-4-150	SS304 SS316	0.18	4.6	0.010	0.25	5.9	150	1.4	35
BCT-4-200	SS304 SS316	0.18	4.6	0.010	0.25	7.9	200	2.0	50
BCT-4-250	SS304 SS316	0.18	4.6	0.010	0.25	9.8	250	2.6	65
BCT-4-300	SS304 SS316	0.18	4.6	0.010	0.25	11.8	300	3.1	80
BCT-4-350	SS304 SS316	0.18	4.6	0.010	2.5	13.8	350	3.7	95
BCT-4-400	SS304 SS316	0.18	4.6	0.010	0.25	15.7	400	4.3	110
BCT-4-450	SS304 SS316	0.18	4.6	0.010	0.25	17.7	450	4.9	125
BCT-4-500	SS304 SS316	0.18	4.6	0.010	0.25	19.5	500	5.5	140
BCT-4-550	SS304 SS316	0.18	4.6	0.010	0.25	21.7	550	6.3	160
BCT-4-600	SS304 SS316	0.18	4.6	0.010	0.25	23.6	600	6.7	170
BCT-4-650	SS304 SS316	0.18	4.6	0.010	0.25	25.6	650	7.7	195
BCT-4-700	SS304 SS316	0.18	4.6	0.010	0.25	27.9	700	8.3	210
BCT-4-750	SS304 SS316	0.18	4.6	0.010	0.25	29.5	750	8.9	225
BCT-4-800	SS304 SS316	0.18	4.6	0.010	0.25	31.5	800	9.4	240
BCT-4-850	SS304 SS316	0.18	4.6	0.010	0.25	33.5	850	10.1	258
BCT-4-900	SS304 SS316	0.18	4.6	0.010	0.25	35.4	900	10.6	270
BCT-4-950	SS304 SS316	0.18	4.6	0.010	0.25	37.4	950	11.4	290
BCT-4-1000	SS304 SS316	0.18	4.6	0.010	0.25	39.4	1000	11.8	300
BCT-4-1050	SS304 SS316	0.18	4.6	0.010	0.25	41.3	1050	12.7	322
BCT-4-1100	SS304 SS316	0.18	4.6	0.010	0.25	43.3	1100	13.3	338
BCT-4-1200	SS304 SS316	0.18	4.6	0.010	0.25	47.2	1200	14.3	363
BCT-4-1300	SS304 SS316	0.18	4.6	0.010	0.25	51.2	1300	15.8	401
BCT-4-1400	SS304 SS316	0.18	4.6	0.010	0.25	55.1	1400	17.0	433
BCT-4-1500	SS304 SS316	0.18	4.6	0.010	0.25	59.1	1500	18.3	465
BCT-4-1600	SS304 SS316	0.18	4.6	0.010	0.25	63.0	1600	19.6	497
BCT-4-1700	SS304 SS316	0.18	4.6	0.010	0.25	67.0	1700	20.8	529
BCT-4-1800	SS304 SS316	0.18	4.6	0.010	0.25	70.9	1800	22.0	561
BCT-4-1900	SS304 SS316	0.18	4.6	0.010	0.25	74.8	1900	23.3	592
BCT-4-2000	SS304 SS316	0.18	4.6	0.010	0.25	78.7	2000	24.6	624

7.9MM WIDE UNCOATED

Item No.	Material	Width		Thickness		Length		Max Bundle Diameter
Item No.	Material	In	mm	In	mm	mm	In	In	mm
BCT-7-150	SS304 SS316	0.31	7.9	0.010	0.25	5.9	150	1.4	35
BCT-7-200	SS304 SS316	0.31	7.9	0.010	0.25	7.9	200	2.0	50
BCT-7-250	SS304 SS316	0.31	7.9	0.010	0.25	9.8	250	2.6	65
BCT-7-300	SS304 SS316	0.31	7.9	0.010	0.25	11.8	300	3.1	80
BCT-7-350	SS304 SS316	0.31	7.9	0.010	2.5	13.8	350	3.7	95
BCT-7-400	SS304 SS316	0.31	7.9	0.010	0.25	15.7	400	4.3	110
BCT-7-450	SS304 SS316	0.31	7.9	0.010	0.25	17.7	450	4.9	125
BCT-7-500	SS304 SS316	0.31	7.9	0.010	0.25	19.7	500	5.5	140
BCT-7-550	SS304 SS316	0.31	7.9	0.010	0.25	21.7	550	6.3	160
BCT-7-600	SS304 SS316	0.31	7.9	0.010	0.25	23.6	600	6.7	170
BCT-7-650	SS304 SS316	0.31	7.9	0.010	0.25	25.6	650	7.7	195
BCT-7-700	SS304 SS316	0.31	7.9	0.010	0.25	27.9	700	8.3	210
BCT-7-750	SS304 SS316	0.31	7.9	0.010	0.25	29.5	750	8.9	225
BCT-7-800	SS304 SS316	0.31	7.9	0.010	0.25	31.5	800	9.4	240
BCT-7-850	SS304 SS316	0.31	7.9	0.010	0.25	33.5	850	10.1	258
BCT-7-900	SS304 SS316	0.31	7.9	0.010	0.25	35.4	900	10.6	270
BCT-7-950	SS304 SS316	0.31	7.9	0.010	0.25	37.4	950	11.4	290
BCT-7-1000	SS304 SS316	0.31	7.9	0.010	0.25	39.4	1000	11.8	300
BCT-7-1050	SS304 SS316	0.31	7.9	0.010	0.25	41.3	1050	12.7	322
BCT-7-1100	SS304 SS316	0.31	7.9	0.010	0.25	43.3	1100	13.3	338
BCT-7-1200	SS304 SS316	0.31	7.9	0.010	0.25	47.2	1200	14.3	363
BCT-7-1300	SS304 SS316	0.31	7.9	0.010	0.25	51.2	1300	15.8	401
BCT-7-1400	SS304 SS316	0.31	7.9	0.010	0.25	55.1	1400	17.0	433
BCT-7-1500	SS304 SS316	0.31	7.9	0.010	0.25	59.1	1500	18.3	465
BCT-7-1600	SS304 SS316	0.31	7.9	0.010	0.25	63.0	1600	19.6	497
BCT-7-1700	SS304 SS316	0.31	7.9	0.010	0.25	67.0	1700	20.8	529
BCT-7-1800	SS304 SS316	0.31	7.9	0.010	0.25	70.9	1800	22.0	561
BCT-7-1900	SS304 SS316	0.31	7.9	0.010	0.25	74.8	1900	23.3	592
BCT-7-2000	SS304 SS316	0.31	7.9	0.010	0.25	78.7	2000	24.6	624

stainless steel band and buckles Banding and Buckle Crimping Tool TB Buckies Stainless Steel SB Buckies

Coated ball-lock stainless steel cable tie

Ball-lock stainless steel cable tie
