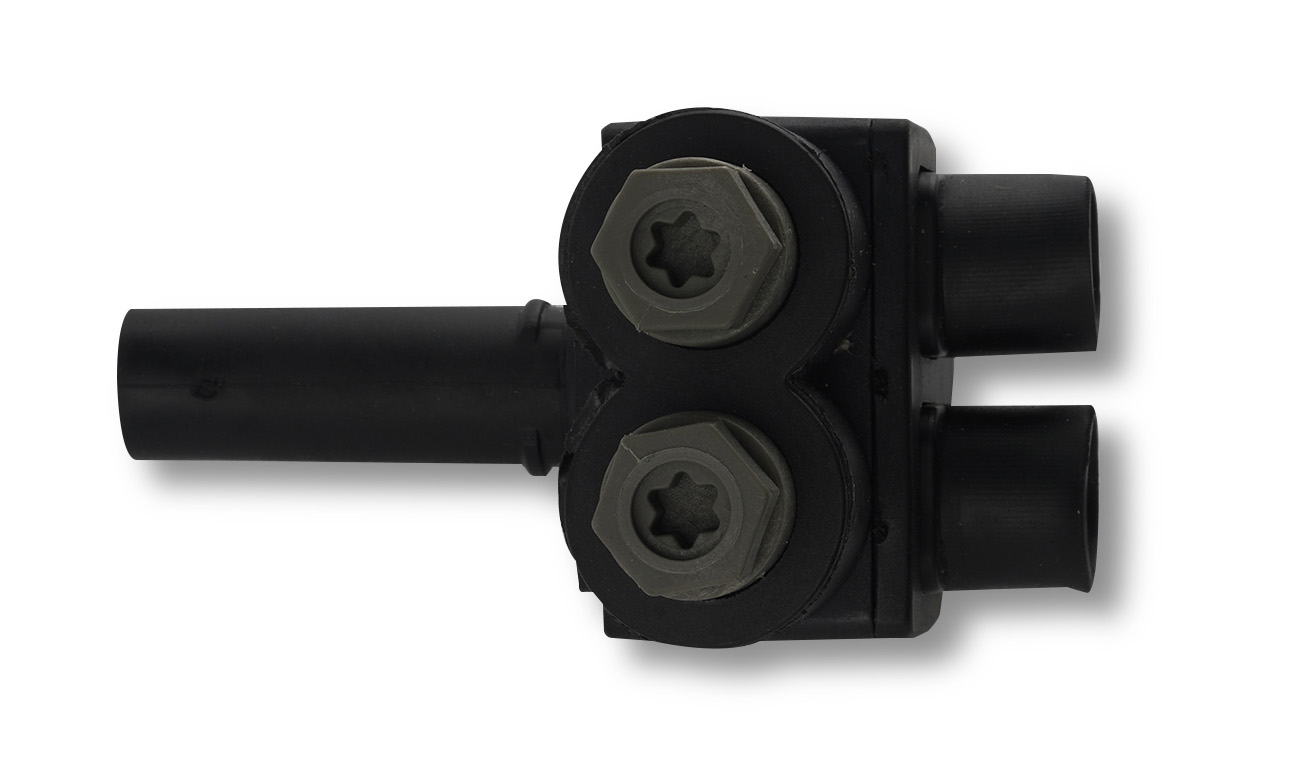

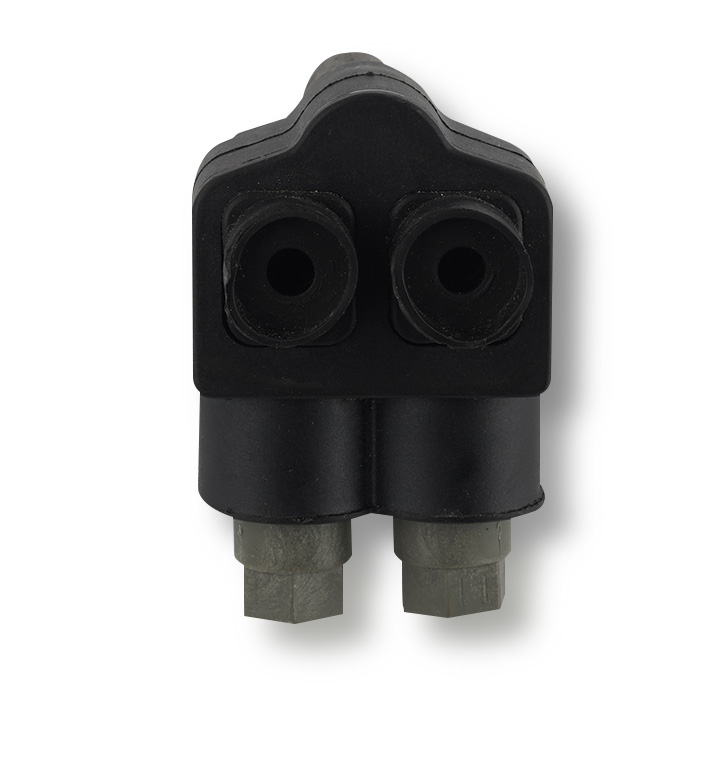

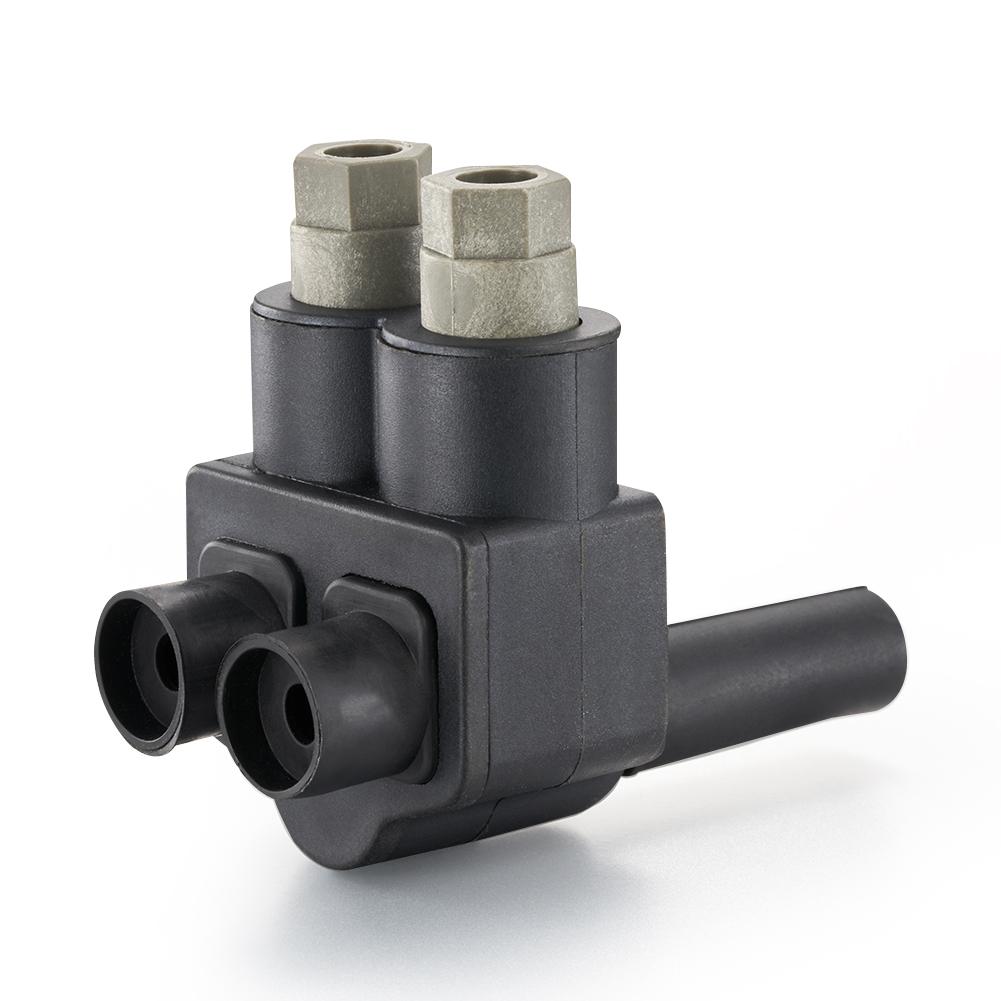

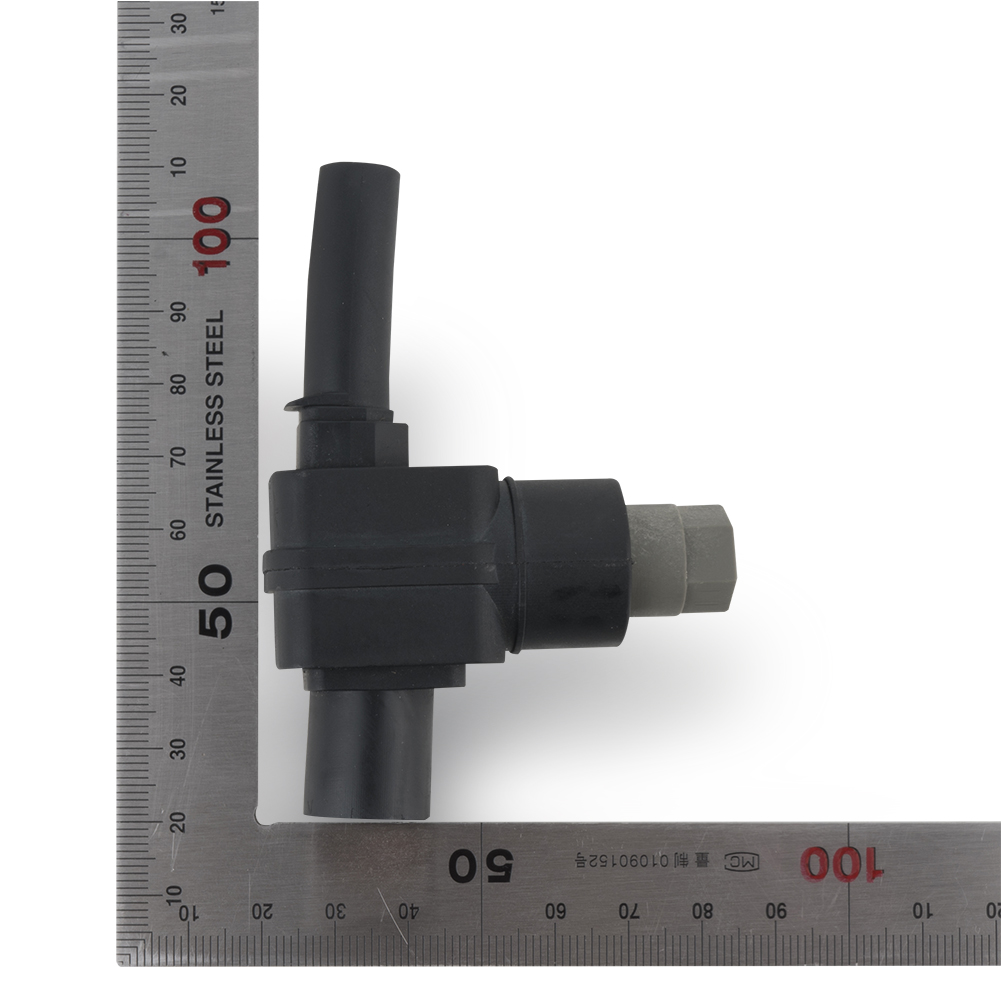

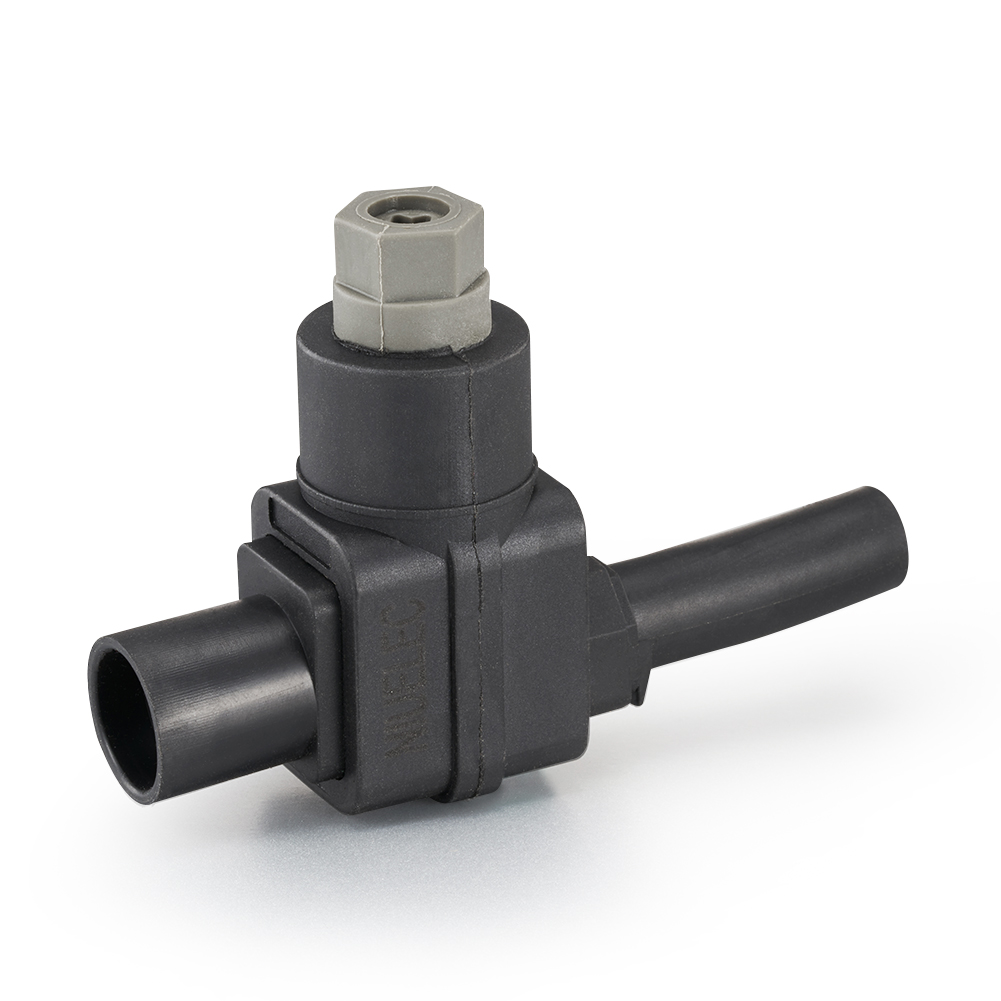

CPC SERIES INSULATION PIERCING CONNECTOR

Item No.: 207
Description

Application:
The CPC insulation piercing connectors are applicable for all types of LV-ABC.

Features:
1. Had passed 6KV test under water for 1 Min.
2. Simple installation, small contact resistance and low temperature rise of the clamp. The body materials are UV-resistant.
3. Its self-seam frame is wet proof, water proof, and anti-corr osive, which can prolong the using life of insulated lead and connector.
4. Standard: EN 50483-4, NFC 33-020, NFC 33-004



Item No. Main wire section Branch wire section
CPC-1 Al 25-95 Al 2.5-95
CPC-2 35 2.5-35
CPC-3 70 2X(6-35)

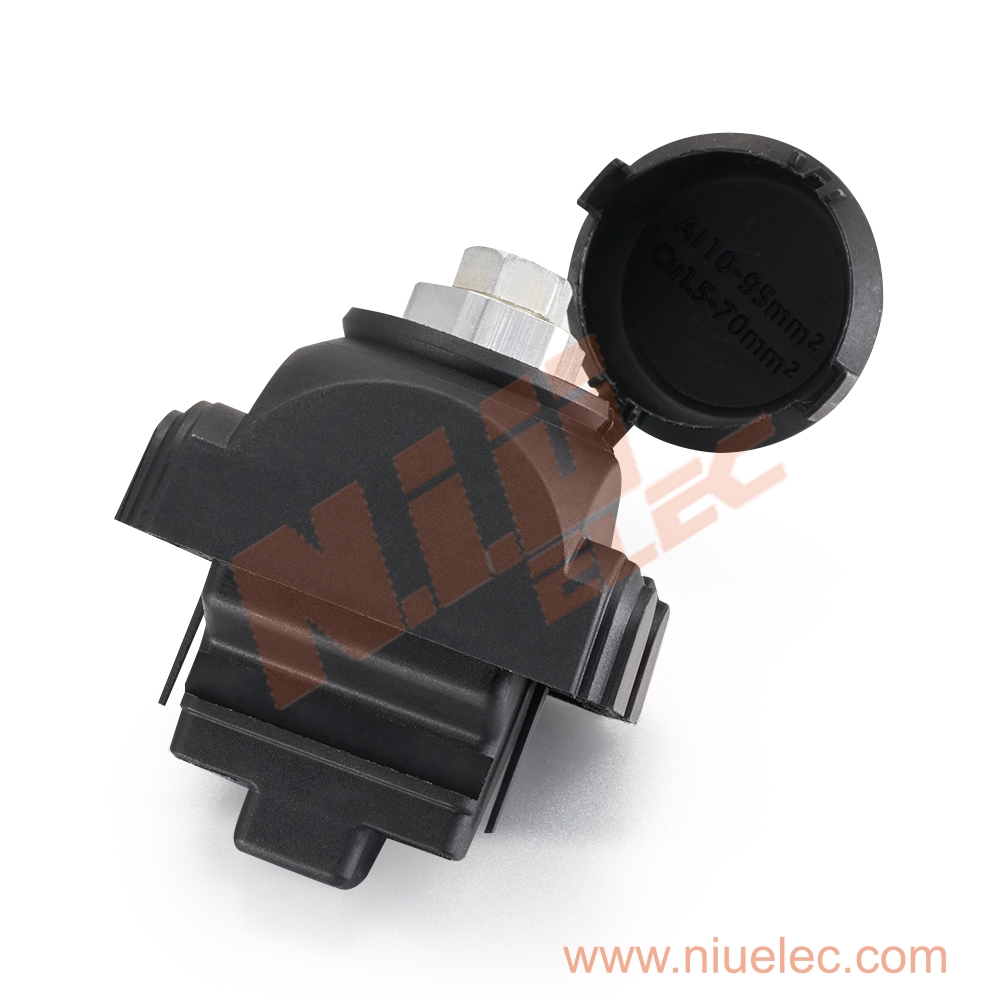

Insulated piercing connector NU series insulation piercing connector CPB series insulation piercing connector JBC series insulation piercing connector TTD Insulated piercing connector
