Application:

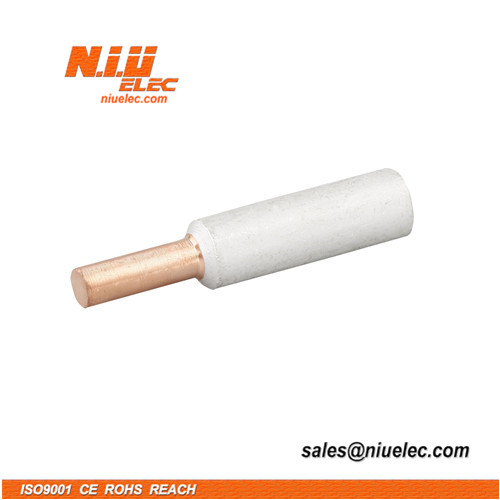

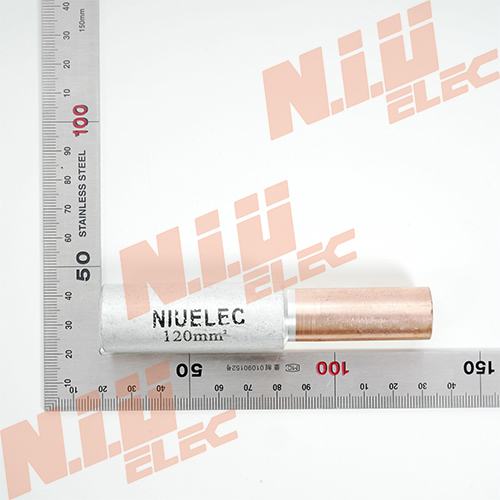

DTL-7 Pin Friction Welded Connector is suitable for screwing non-tension Al connections in Cu clamps.
Features:
1. Friction welded.
2. Aluminium barrel is filled by neutral grease and covered by cap.
3. Pre-rounded sector shaped conductors.
4. Material: CU≥99.9%, AL≥99.5%
| Item No. | d1±0.2 | D±0.2 | d2±0.2 | L1±1 | L±2 |
| DTL-7-16 | 6.3 | 12 | 6 | 20 | 58 |
| DTL-7-25 | 7.1 | 12 | 6 | 20 | 58 |
| DTL-7-35 | 8.5 | 14 | 7 | 22 | 71 |
| DTL-7-50 | 10.0 | 16 | 8 | 25 | 74 |
| DTL-7-70 | 11.5 | 18 | 10 | 30 | 87 |
| DTL-7-95 | 13.5 | 22 | 12 | 33 | 91 |
| DTL-7-120 | 15.0 | 23 | 12 | 38 | 98 |
| DTL-7-150 | 18.5 | 25 | 12 | 38 | 108 |
| DTL-7-185 | 19.0 | 27 | 14 | 40 | 118 |
| DTL-7-240 | 21.0 | 32 | 16 | 40 | 128 |
