Application:

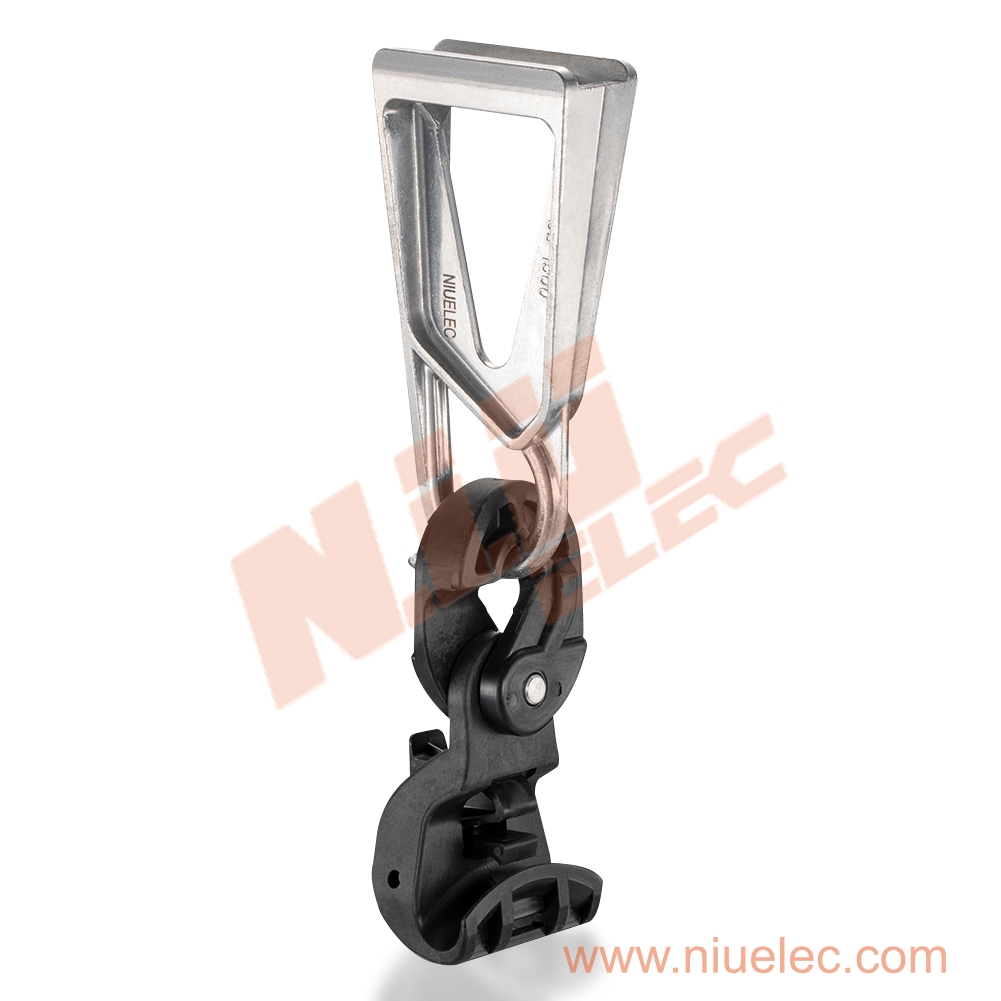

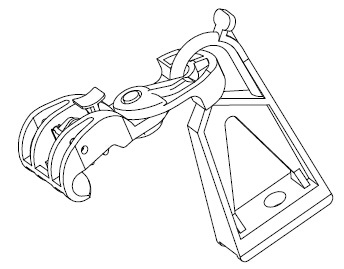

The ES-15 Suspension Set is used to hang LV-ABC cables on poles with the insulated neutral messenger.
Features:
1) It can be paired with all hooks and brackets, which are not affected by UV, weather and climate.
2) The anchoring bracket is made of corrosion resistant aluminium alloy.
3) The clamp and movable link is made of weather resistant and mechanically reliable insulated polymer.
4) Hang the self-supporting insulated wire on the bracket with maximum angle of 60 degrees.
5) Standard:NFC 33-040,EN 50483-3
| Item No. | Cross section(mm²） | Conductor（mm） | Breaking load |
| ES-15 | 16-95 | -- | 10KN |
