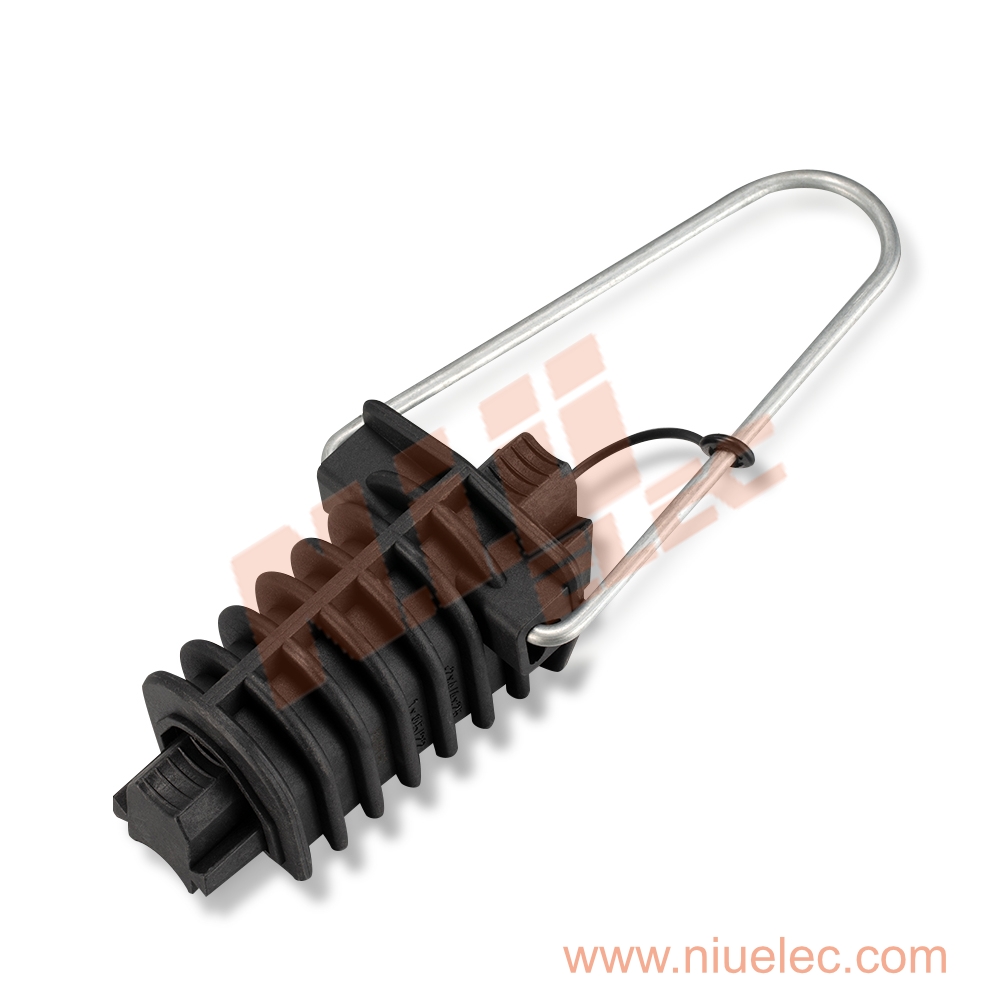

PA25E Anchor Clamp

Description

Application:
PA25E Series Anchoring Wedge clamp is used to fix the end of inside line, also suitable for insulated low-voltage ABC cable. It is also suitable for multiple conductors.

Features:
1) It made of high strength PA66, nylon plus fiber glass, stainless steel. The body materials are UV-resistant.
2) Cable gripping device in insulating material ensures the double insulation of the neutral core and avoids damage to sheath, secured parts.
3) It is characterized by high mechanical stability, reduced dimensions for easier handling, high mechanical and climatic resistance.

4) Tool free installation with wedges sliding inside the body, easy to open bail permits fixing to brackets and pigtails.
5) There is flexible stainless steel wire with the clamp.
6) Standard: NFC33-042





Item No. Cross section(mm2) Material Conductor(mm) Breaking load
PA25E 4X(16-25) Nylon,Steel 4-8 2KN
