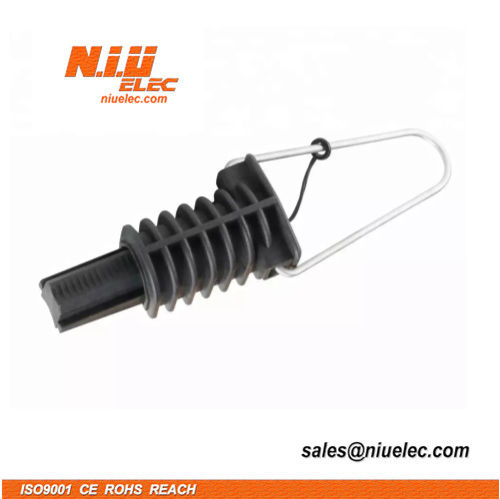

PAR21 Anchor Clamp

Description
Application:
The PAR21 Anchor clamp is used to fix the end of inside line, also suitable for insulated LV-ABC cable and multiple
conductors.

Feature:
1.It made of high strength PA66, nylon plus fiber glass, stainless steel. The body materials are UV-resistant.
2.Cable gripping device in insulating material ensures the double insulation of the neutral core and avoids damage to sheath,secured parts.
3.No tools required.
4.Standard: NFC 33-042



Item No. Cross section
(mm2)
Material Conductor
(mm)
Breaking
load
PAR21 2X4/4X25 Nylon,Steel 4-19 2.5KN
