Application:

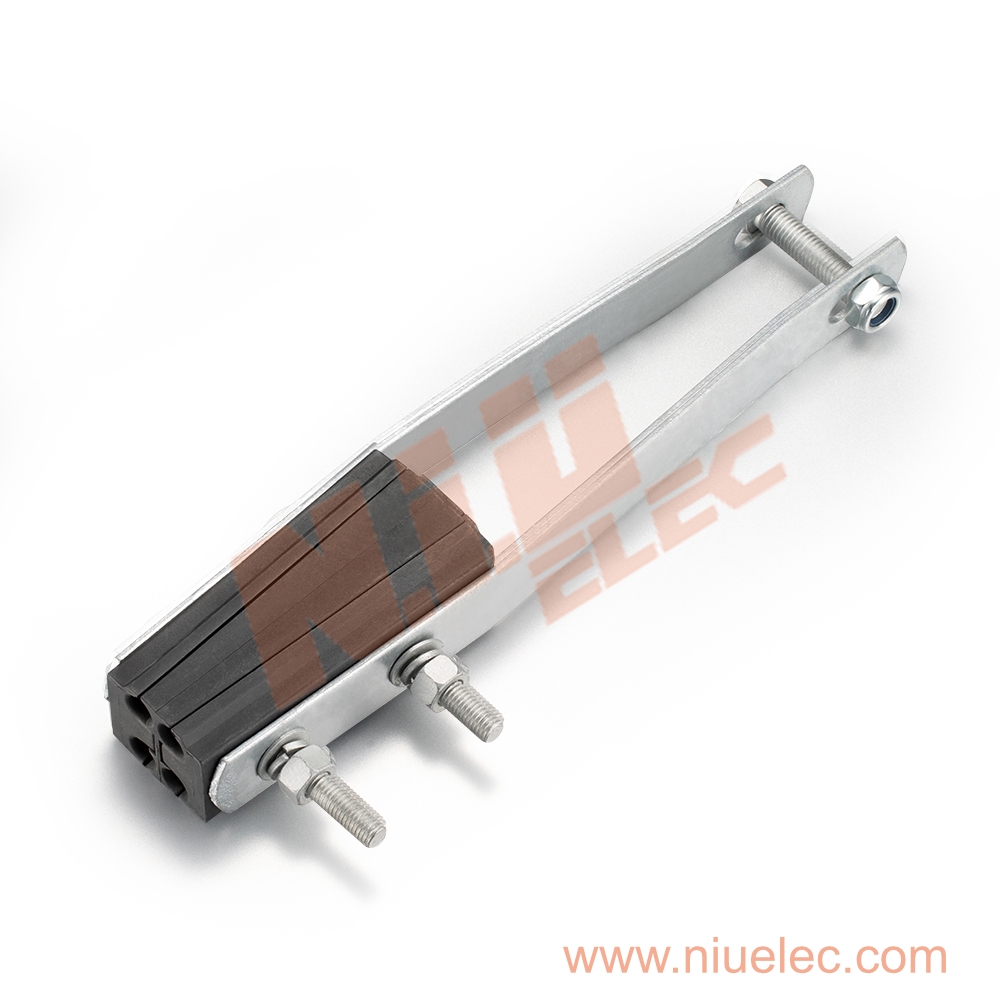

PAT470-95 Branch Anchor Clamp four core collecting strain clamp is suitable for the end of serial wire terminal, it's action is fixing or tightening the insulation conductor. The clamp has been designed four core parallel groove, after clamping the four insulation conductor, then tighten up the bolt to have large grip strength.
Features：
1) The wedge-shaped clamps always adjust automatically, and the spring reduce the difficulty of installstion, the body materials are UV-resistant.
2) The clamp is insulated that can be fixed in the bracket or hook through the only bolt.
| Iteam No. | Cross section(mm²） | Conductor(mm) | Breaking load |
| PAT470-95 | 4X(70-95) | 14-16 | 20KN |
