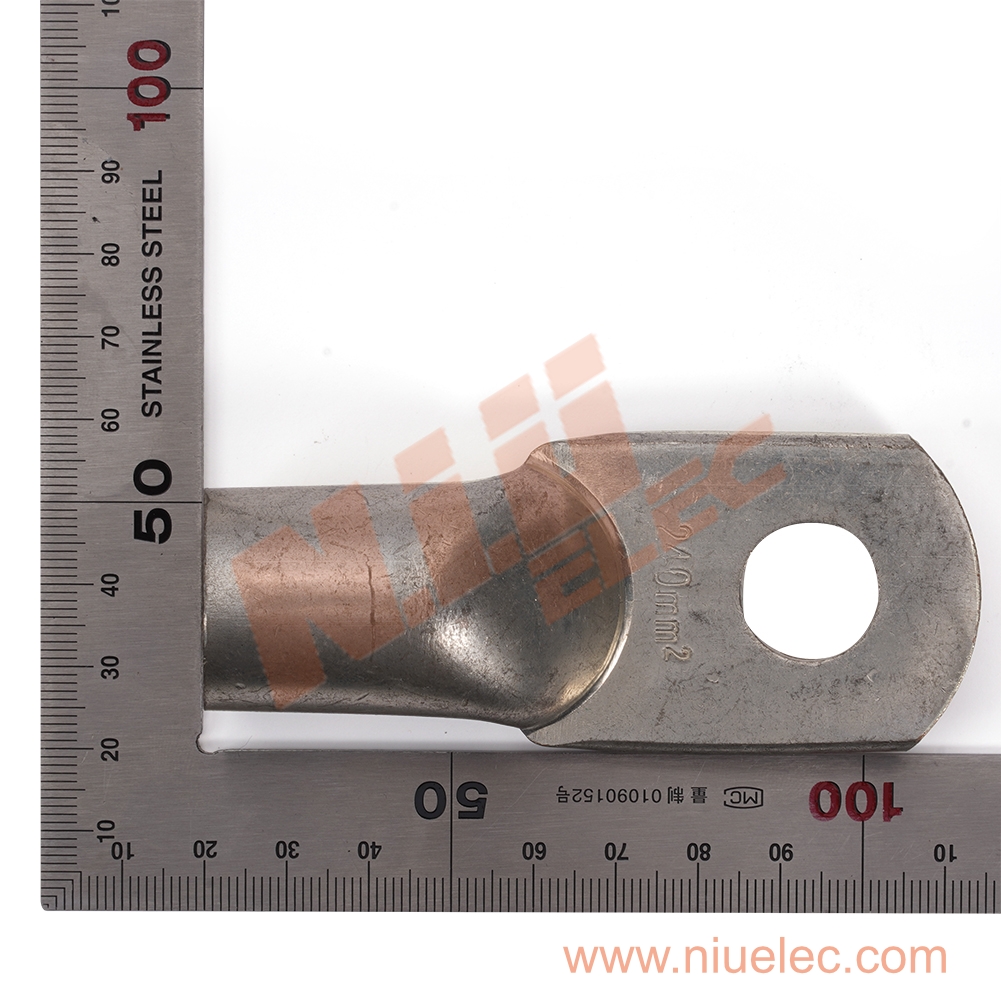

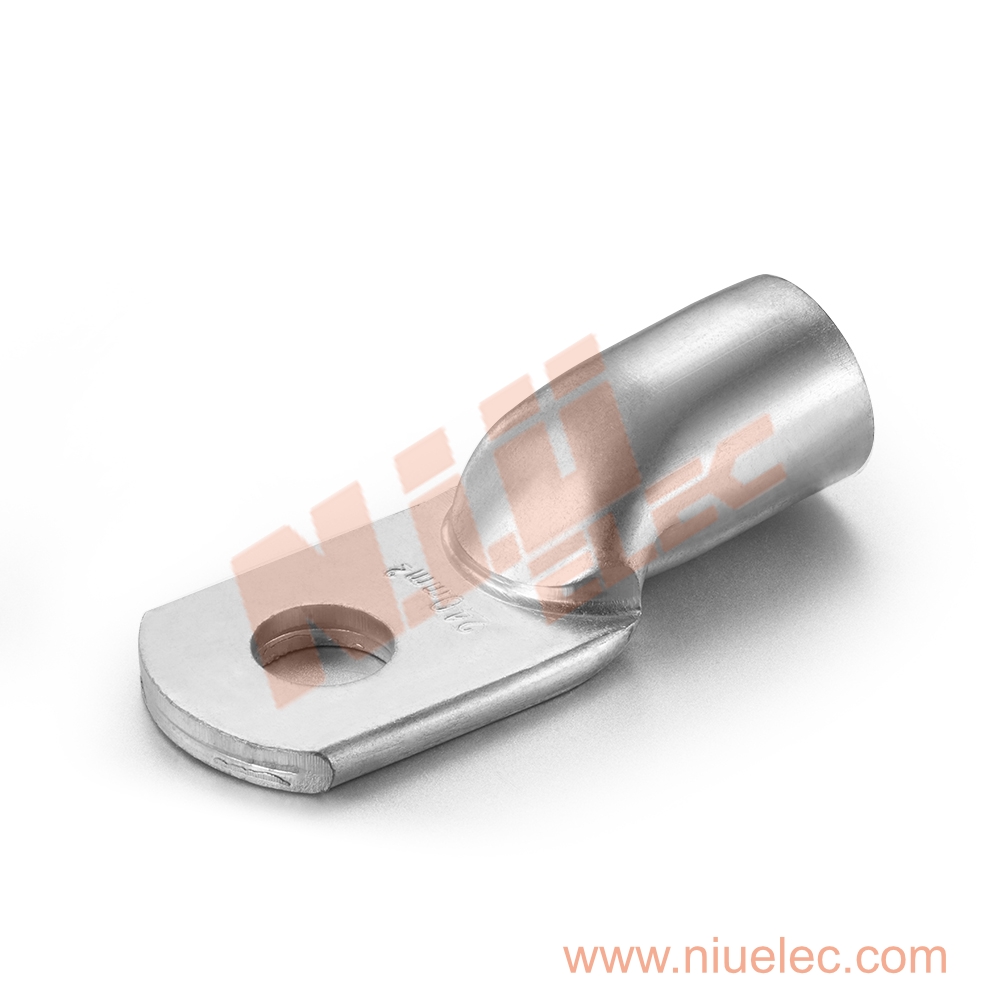

JG Copper Crimp Lug

Name: JG Copper Crimp Lug
Brand: N.I.U ELECTRIC GROUP CO., LTD
Availability: InStock
Rating: 5 (1 reviews)

INQUIRY PDF Format

Description

Application:
JG Copper Copper Crimp Lugs are suitable for the connection of copper conductors(section 10-300mm2) in power cable with electronic equipment.

Feature:
1. Have a viewing window to check the location of the conductor
2. Unique bell mouth for easy insertion of stranded conductors
3. Material: CU≥99.9%
4. Surface: electro tin plated
5.Application: low voltage, indoor
6.We also can produce 2 holes or 3 holes

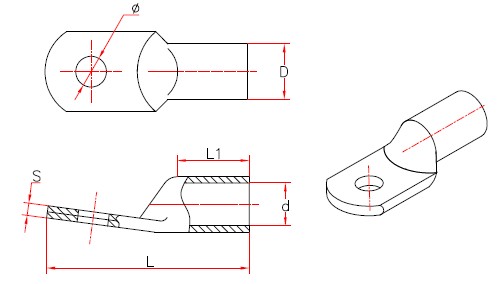

Item No.	Φ±0.5	D±0.5	d±0.5	L±2	L1±2	W±0.5	S±0.5	Weight(g)
JG-10	Φ6.5 , Φ8.5	8	5.8	38	12	11.4	2.0	7.7
JG-16	Φ6.5 , Φ8.5	9	6.8	41	15	12.9	2.1	9.5
JG-16	Φ10.5	9	6.7	41	15	14.5	2.0	9.5
JG-25	Φ8.5,Φ10.5	10	7.8	46	16	14.5	2.2	10.5
JG-35	Φ8.5,Φ10.5	11	8.8	52	17	16.2	2.2	14.8
JG-35	Φ12.5	11	8.8	52	17	17.6	2.1	14.8
JG-50	Φ8.5,Φ10.5	13	10.5	54	18	19.0	2.5	21.6
JG-50	Φ12.5	13	10.5	54	18	19.4	2.5	21.6
JG-70	Φ8.5,Φ10.5,Φ12.5	16	12.7	61	19	23.2	3.3	39.6
JG-95	Φ10.5,Φ12.5	18	14.6	66	19	26.0	3.3	50
JG-120	Φ10.5,Φ12.5,Φ14.5	20	15.8	72	20	29.0	4.0	63
JG-150	Φ10.5,Φ12.5,Φ14.5	22	17.2	75	21	32.0	4.1	73
JG-185	Φ12.5,Φ14.5,Φ16.5	25	19.5	86	25	36.3	5.2	109
JG-240	Φ14.5,Φ16.5	27	20.9	93	27	38.5	5.8	158
JG-300	Φ16.5	30	24.0	103	30	43.3	6.0	216
