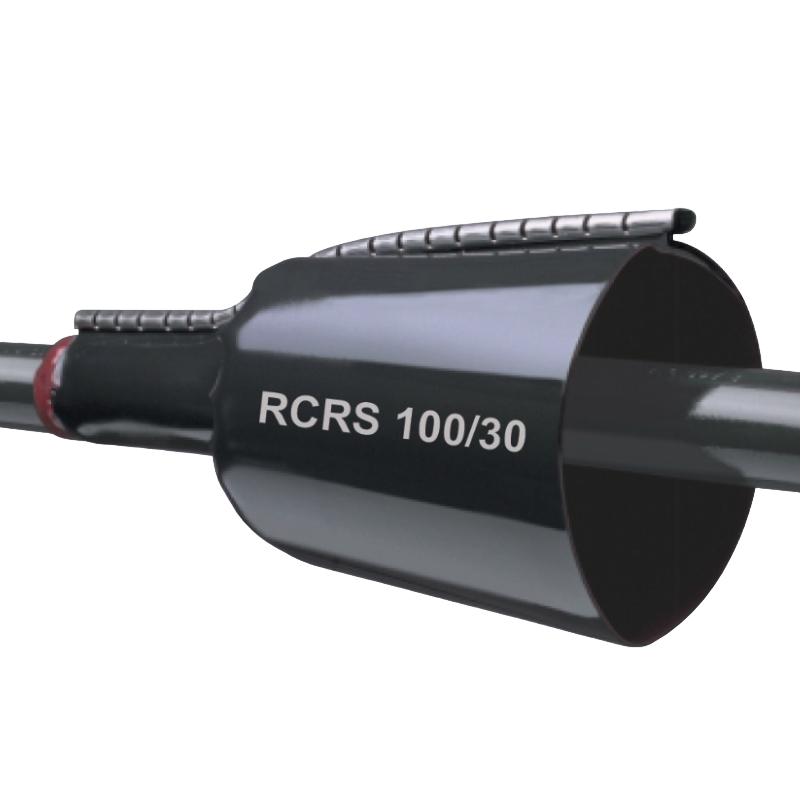

Heat Shrinkable Cable Repair Sleeve (RCRS)

Description
ApplIcatIon:

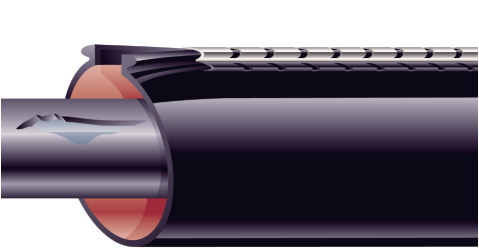

Adhesive lined, heat shrinkable wraparound sleeve, that is closed with a flexible Stainless-steel locking channel. used for general rejacketing and sealing applications, Protection of damaged cable or repair of cable joints. installs easily in splice. Applications that are longer in length.

Features and Benefits:
1. >3:1 shrink ratio
2. Provides water tight seal upon recovery
3. Offers mechanical durability
4. Application procedure is quick, simple and clean
5. Covered with the monochromatic paint that changes upon correct
shrink temperature
6. Sleeve and channel can be cut to suit short application requirements
7. Steel channel provides permanent closure system
8. Installation temperature range: -15°C to 45°C

Typical Applications:
1. Cable jacket repair
2. Primary insulation cover on low voltage cable
