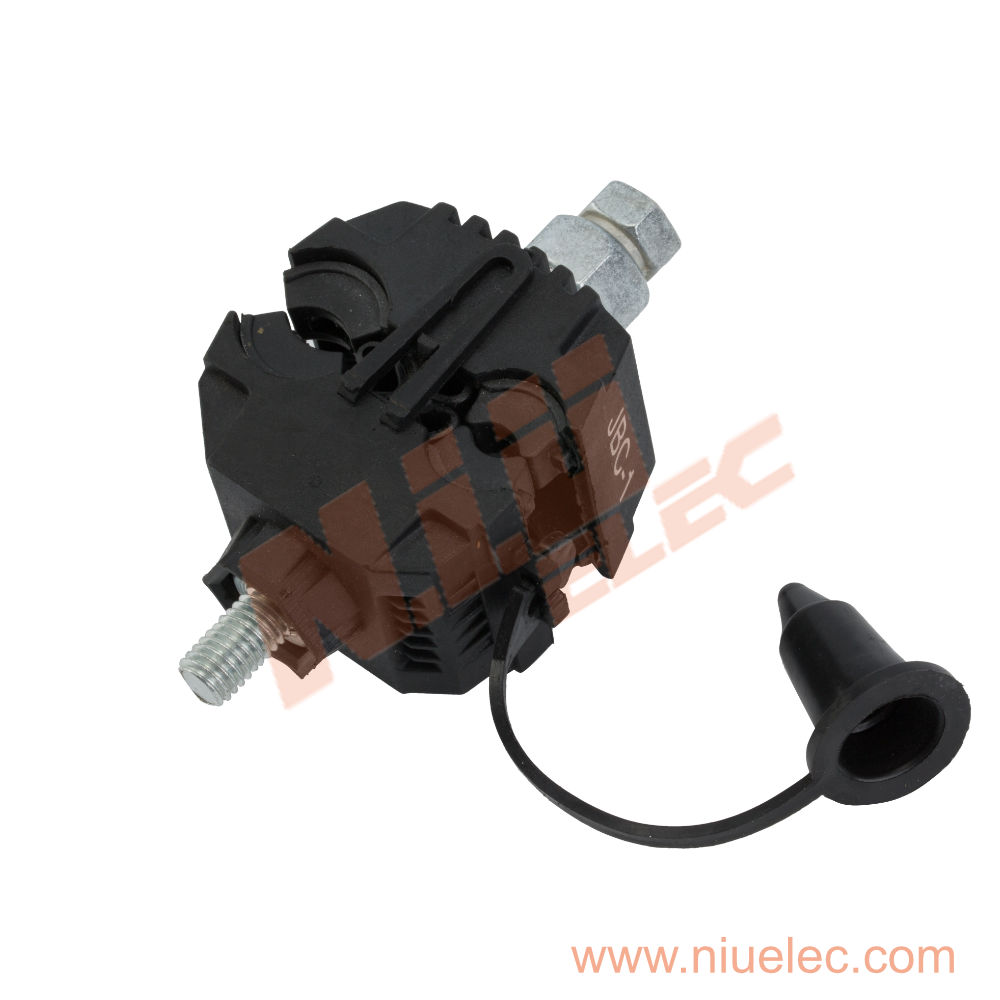

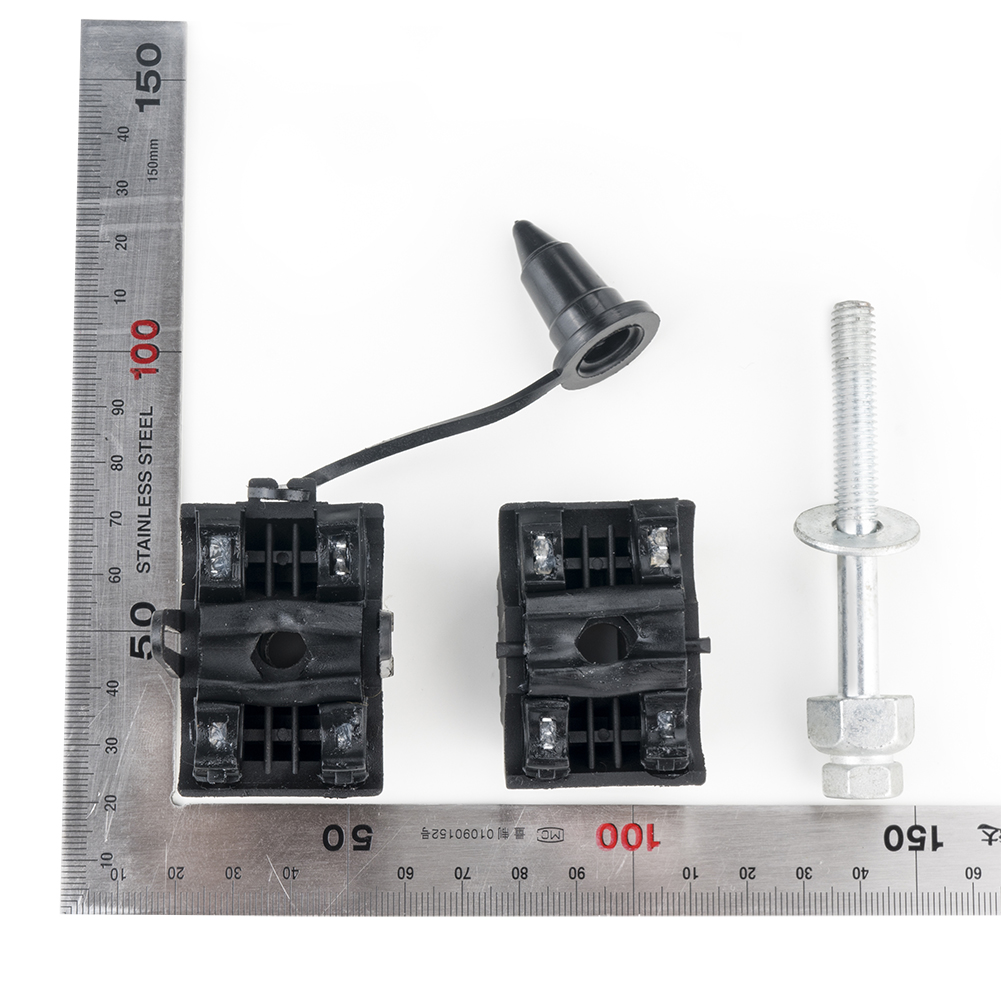

JBC-1 SERIES INSULATION PIERCING CONNECTOR

Features:
1).It is featuring a unique insulation technique.
2).Connections can be made live in minutes and suitable for aluminum or Copper, the body materials are UV-resistant.
Description

Advantages:

1).Designed for all weather applications and easy to install.

2).Special connecting tablet is adopted in our insulation piercing connector, which is applicable to joint of Cu(Al) and Cu(Al) or Cu and Al.

3).The self-seam frame of JBC Series Insulation Piercing Connector is wet proof, water proof, and anti-corrosive, which can prolong the using life of insulated lead and connector.

4).Saving investments: first, less installation space needed; second, saving cost of bridge and civil engineering; third, it does not require terminal boxes, distribution boxes when building.

Instructions:

Full range of ABC Insulation Piercing Connectors used to tap off low voltage XLPE insulated Aerial Bundled Cable (ABC).

1).Adjust the connector nut to suitable location.

2).Put the branch wire into the cap sheath fully.

3).Insert the main wire, if there are two lays of insulated lay in the main cable, should strip a certain length of the first insulated lay from inserted end.

4).Turn the nut by hand, and fix the connector in suitable location.

5).Screw the nut with the sleeve spanner.

6).Screw the nut continually until the top part is cracked and dropped down.



Item No. Main wire section Branch wire section Bolt
JBC-1 35-70 6-35 1
