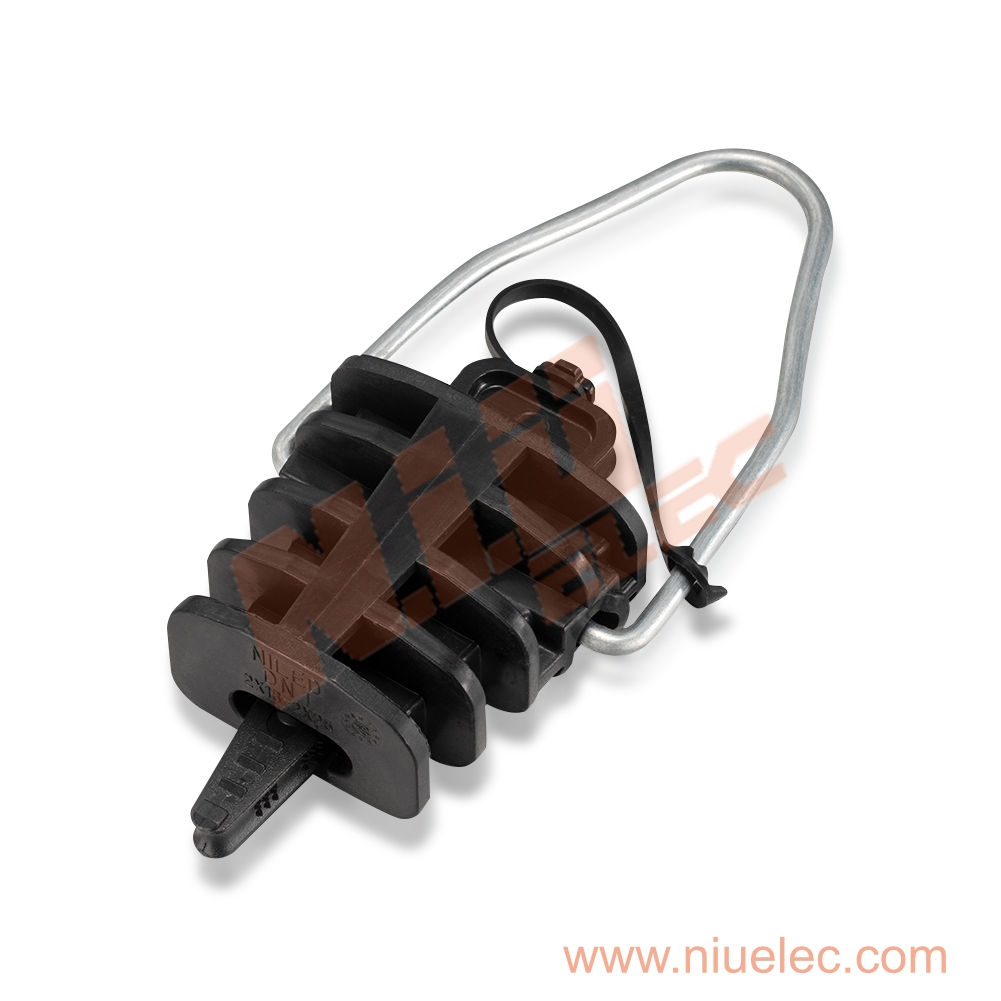

DN1 2-core Anchor Clamp

Description
Application:
The DN1 Anchor clamp is used to fix the end of inside line, also suitable for insulated LV-ABC cable and multiple conductors.

Feature:
1.It made of high strength PA66, nylon plus fiber glass, stainless steel. The body materials are UV-resistant.
2.It is characterized by high mechanical stability, reduced dimensions for easier handling, high mechanical and climatic
resistance.
3.Tool free installation with wedges sliding inside the body, easy to open bail permits fixing to brackets and pigtails.
4.Standard: NFC 33-042.


Item No. Cross section
(mm2)
Material Conductor
(mm)
Breaking
load
DN1 2X(16-25) Nylon, Steel 6-10 2.5KN
