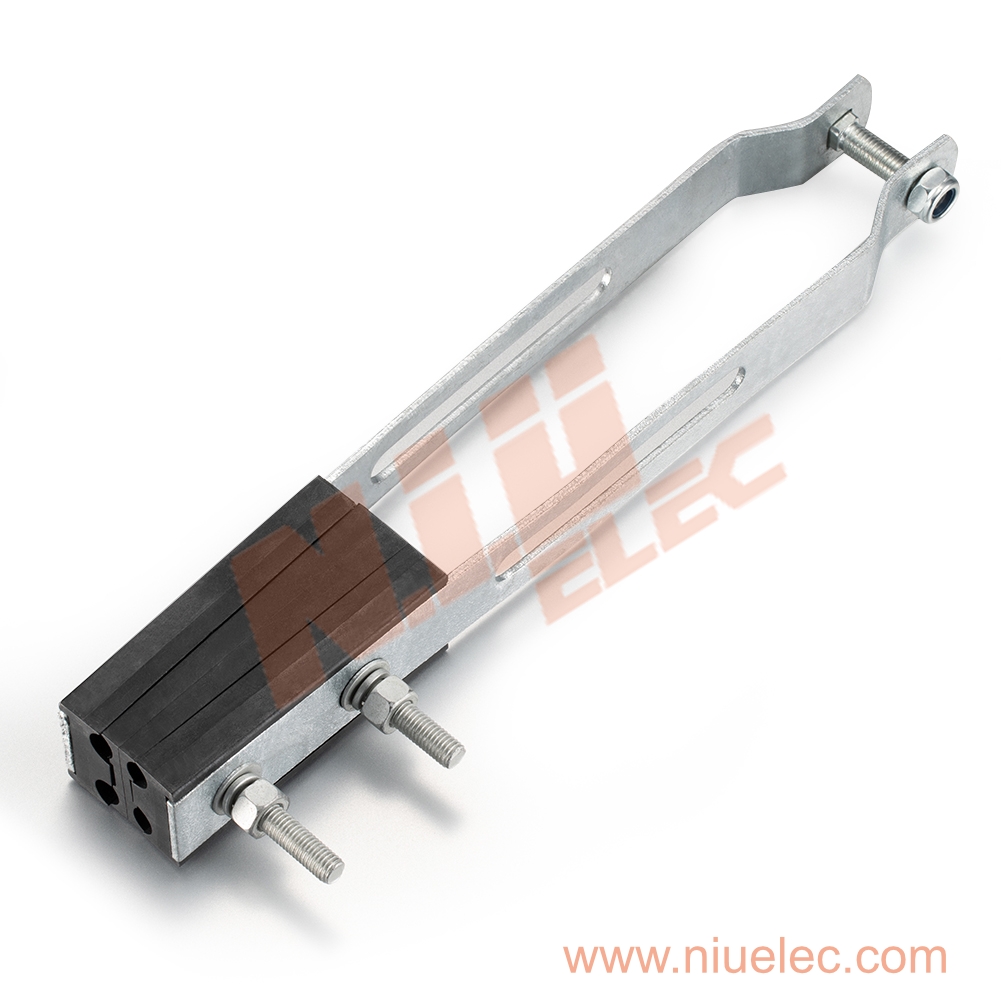

PAG50-120S Branch Anchor Clamp

Description

Application:
PAG50-120S Branch Anchor Clamp is used to fix the two-core and four-core self-supporting insulated wire which have the same cross section.

Features:
1) The clamp is made of dielectric material, which has insulation. The body materials are UV-resistant.
2) All parts are wedges and special spanner is needed.



Iteam No. Cross section(mm²) Conductor(mm) Breaking load
PAG50-120S 4X(16-35) 4-8 8KN
