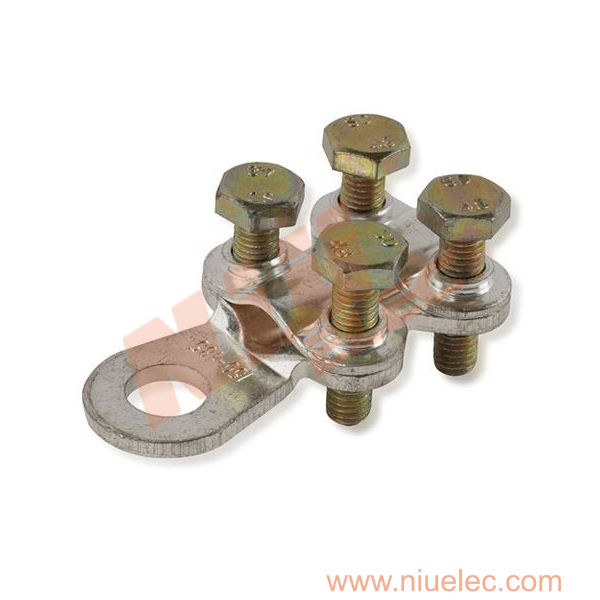

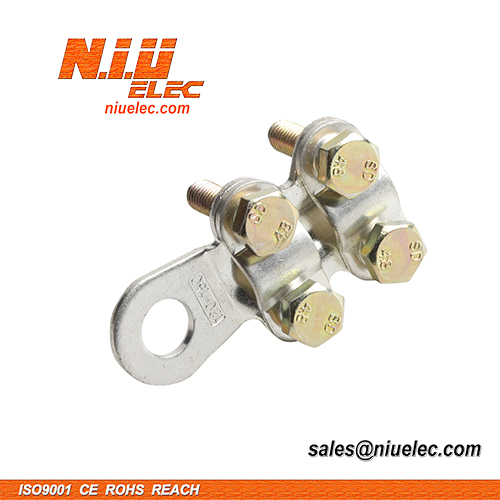

The WCJB Brass Jointing Clamp is designed to address the demands of cable-to-equipment jointing in indoor electrical installations, offering both mechanical stability and consistent electrical performance. This clamp delivers a secure, bolt-fixed connection from cable conductor to equipment or busbar, while also being reusable—making it a cost-effective solution for installations and future modifications.
The clamp body is crafted from high-grade brass, selected for its excellent electrical conductivity and durability. The brass surface is treated with a corrosion-resistant finish that preserves its integrity even in indoor electrical cabinet environments. The clamp utilizes bolts to fix the conductor firmly to the equipment termination point, ensuring both mechanical and electrical continuity. The design supports removal and re-installation without sacrificing connection quality. Multiple size models are available, spanning conductor ranges suitable for control, feeder and equipment branch circuits—this flexibility reduces inventory burdens while covering numerous application scenarios.
In field use, the WCJB Brass Jointing Clamp delivers low-resistance electrical contact and stable mechanical anchoring. The bolt connection resists loosening under vibration or minor movement, maintaining reliable current flow and minimizing heat rise. The brass and finish resist oxidation, ensuring long-term reliability in indoor distribution panels. Its broad conductor compatibility allows engineers and installers to standardize on fewer clamp types across different cable sizes. The reusable nature means when equipment is upgraded or cables are changed, the same clamp can be reused—reducing downtime and procurement cost.
This clamp is suitable for indoor distribution panelboards, switchgear terminations, control cabinet wiring, and electrical equipment junctions where cable-to-equipment or cable-to-busbar connections are needed. It works well in new builds, retrofit upgrades and maintenance tasks. Because one clamp series supports multiple conductor sizes, it simplifies spare parts inventories and procurement management. Installers appreciate its adaptability and reliability in environments such as commercial buildings, industrial plants and data/telecom centers. In summary, the WCJB Brass Jointing Clamp offers a durable, flexible, cost-effective jointing solution for professional electrical infrastructure projects.
Application:
WCJB Brass Jointing Clamp is fixed by bolts and used in the connections between the electrical equipment with cable and the indoor distribution equipment.
Advantages：
1)They can be reused many times.
2)Various kinds of size, meet with the customers’requirements.
3)Surface: tin plated
|

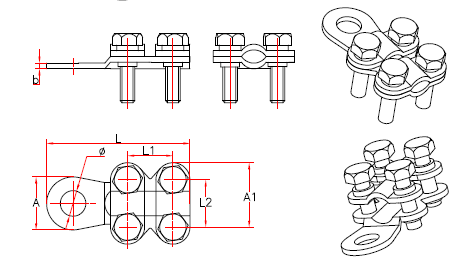

Item No. |
Conductor |
L |
L1 |
L2 |
A |
A1 |
b |
ф |
R |
|
WCJB-1 |
16-25 |
39.5 |
/ |
13 |
25 |
16.5 |
2.8 |
8.8 |
3.5 |
|
WCJB-2 |
16-25 |
45 |
13 |
13 |
22 |
18 |
2.8 |
8.5 |
3.5 |
|
WCJB-3 |
25-35 |
52.5 |
13.5 |
13.5 |
24.5 |
21 |
2.9 |
10.5 |
4 |
|
WCJB-4 |
35-50 |
57 |
16 |
16 |
27.5 |
22 |
3 |
10.5 |
5 |
|
WCJB-5 |
50-70 |
61 |
19 |
19 |
31 |
23 |
3 |
10.5 |
5.5 |
|
WCJB-6 |
70-95 |
69 |
20 |
20 |
35 |
23.5 |
3.2 |
10.5 |
6.5 |
|
WCJB-7 |
95-120 |
74 |
23.5 |
23.5 |
42 |
28.5 |
3.3 |
13.5 |
7.5 |
|
WCJB-8 |
120-150 |
73.5 |
25 |
25 |
41 |
27 |
3.5 |
13.5 |
8.5 |
|
WCJB-9 |
150-185 |
76 |
25.5 |
25.5 |
42 |
28 |
3.7 |
13.5 |
9 |
|
WCJB-10 |
185-240 |
80 |
26 |
26 |
44 |
30 |
4 |
13.5 |
10.5 |
