Application:

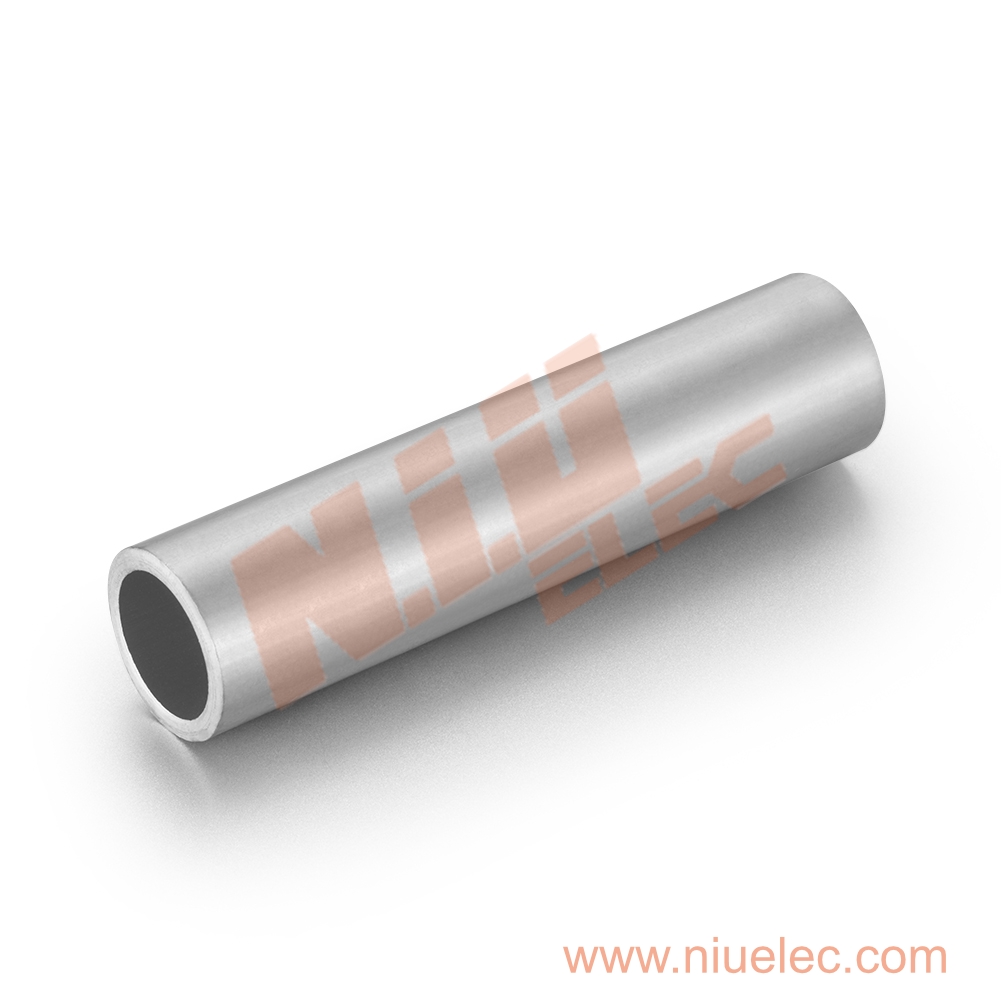

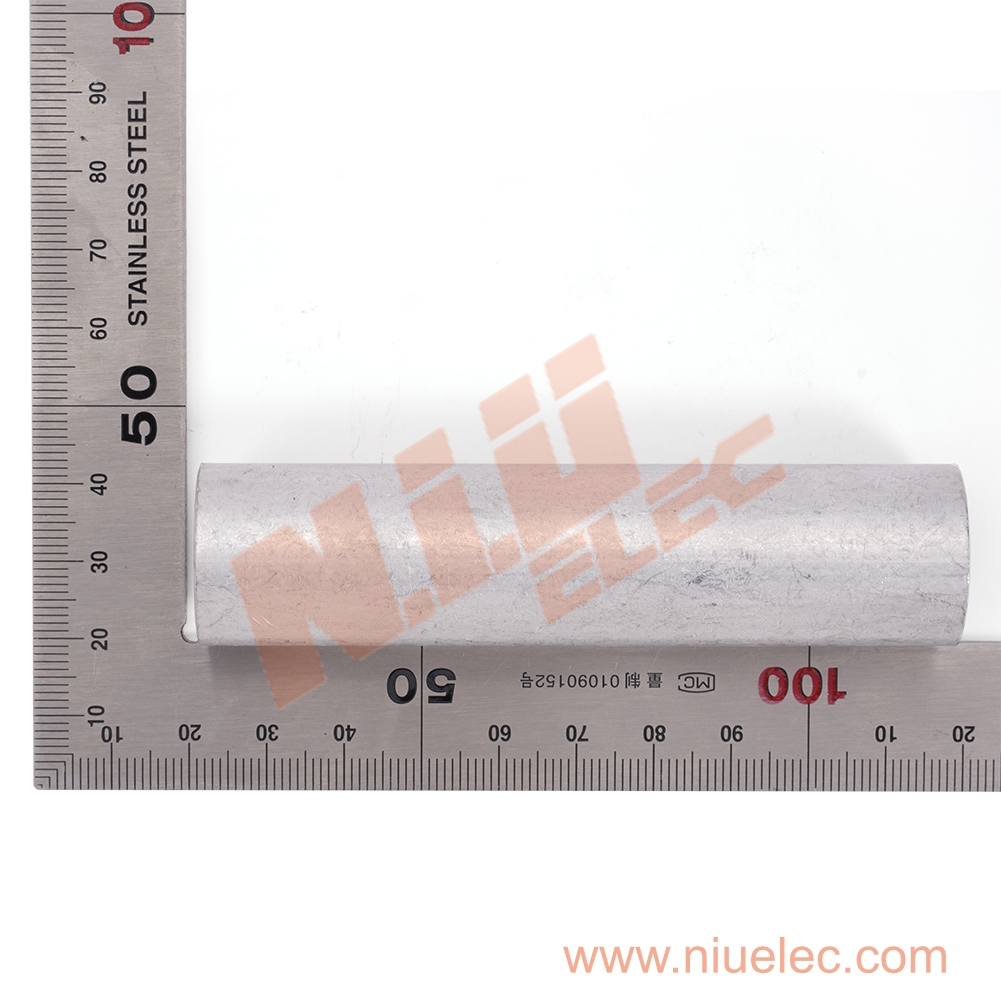

GL-2 Aluminum Connectors Tube(Oil and Water Stop) is suitable for connecting the circular wire and hemicycle wire in distribution equipment or power supply cables.
Features:
1) GL-2 Aluminum Connectors Tube is suitable for aluminum conductor.
2) Oil and Water Stop.
3) The barrels capped are filled with joint compound to avoid oxidization.
4) Material: AL≥99.5%
| Item No. | D±0.2 | d±0.2 | L±2 | L1±2 |
| GL-2-16 | 11 | 6.1 | 70 | 30 |
| GL-2-25 | 12 | 7.1 | 75 | 32 |
| GL-2-35 | 14 | 8.5 | 85 | 37 |
| GL-2-50 | 16 | 9.8 | 95 | 43 |
| GL-2-70 | 18 | 11.5 | 105 | 47 |
| GL-2-95 | 21 | 13.5 | 110 | 50 |
| GL-2-120 | 23 | 15.0 | 115 | 53 |
| GL-2-150 | 25 | 16.5 | 120 | 55 |
| GL-2-185 | 27 | 18.5 | 125 | 57 |
| GL-2-240 | 30 | 21.0 | 130 | 60 |
| GL-2-300 | 34 | 23.5 | 140 | 65 |
| GL-2-400 | 38 | 26.0 | 160 | 70 |
