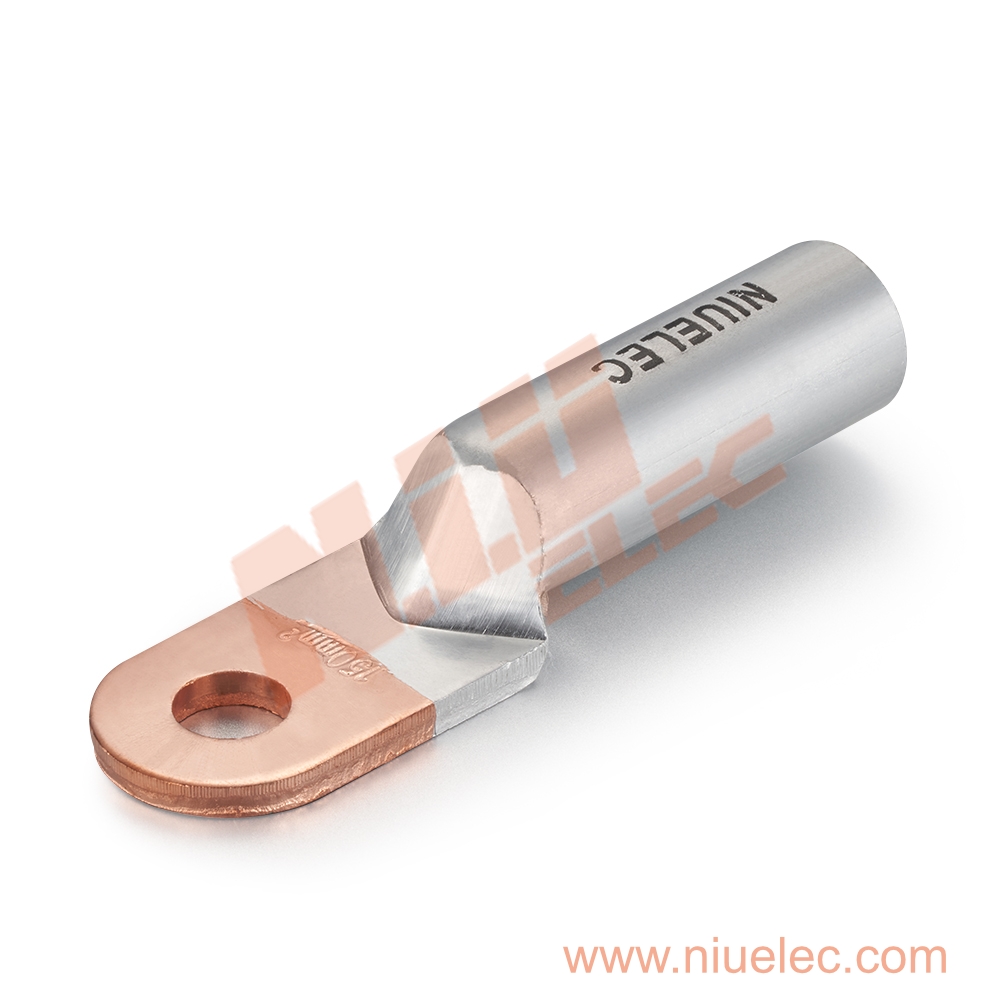

DTL-1 Bimetal Friction Welding Lug

Item No.: 242
Features:
DTL-1 Cable Bimetallic Lug is suitable for aluminum to copper terminations. Manufactured from high purity copper and aluminum rod and friction welded.And DTL-1 Cable Bimetallic Lug  is made of 99.5% purity aluminum and 99.9% purity copper.
Description

Applicaiton:
DTL-1 Cable Bimetallic Lugs are suitable for aluminum to copper terminations.

Features:
1) Prefilled with jointing compound.
2) Friction welded.
3) Material: CU≥99.9%, AL≥99.5%



Item No. φ±0.3 D±0.2 d±0.2 L±2 L1±2 W±0.2 S±0.2
DTL-1-10 8.5 10 5.2 65 30 16 2.2
DTL-1-16 8.5 11 6.1 70 31 16 2.2
DTL-1-25 8.5 12 7.1 75 35 18 2.8
DTL-1-35 10.5 14 8.5 85 38 20.5 3.0
DTL-1-50 10.5 16 9.8 90 42 23 3.4
DTL-1-70 12.5 18 11.5 102 47 26 3.6
DTL-1-95 12.5 21 13.5 112 51 28 4.2
DTL-1-120 14.5 23 15.0 120 53 30 4.8
DTL-1-150 14.5 25 17.0 126 56 34 5.3
DTL-1-185 16.5 27 18.6 133 58 37 5.8
DTL-1-240 16.5 30 21.5 140 60 40 6.0
DTL-1-300 18.0 34 23.5 165 66 45 7.0
DTL-1-400 21.0 38 26.5 178 76 50 --
DTL-1-500 21.0 45 29.5 200 85 55 --
DTL-1-630 -- 50 32.5 225 85 60 --
DTL-1-800 -- 60 37.0 270 90 100 --
