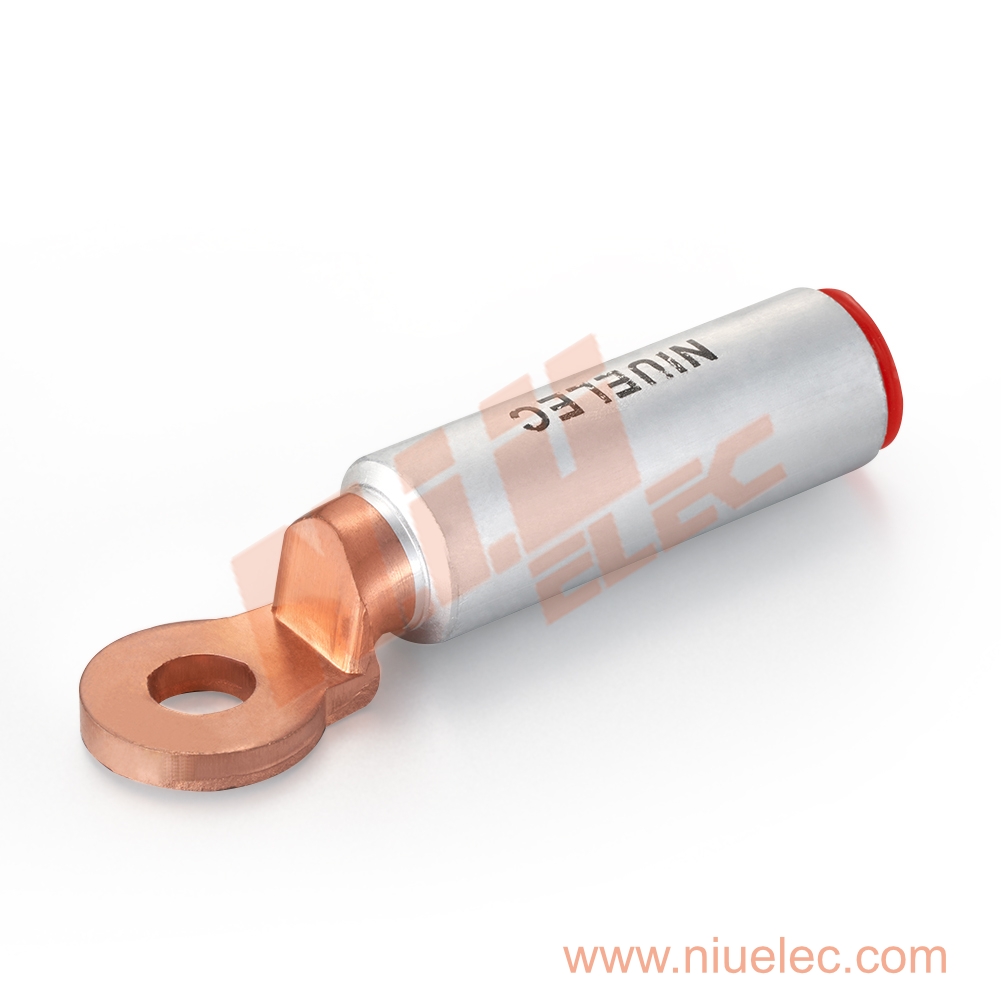

DTL-2 Bimetallic Lugs Friction Welding Lug

Item No.: 343
Features:
DTL-2 Cable Bimetallic Lug is suitable for aluminum to copper terminations. Manufactured from high purity copper and aluminum rod and friction welded. And DTL-2 Cable Bimetallic Lug is made of 99.5% purity aluminum and 99.9% purity copper.
Description

Application:
DTL-2 Cable Bimetallic Lugs suitable for aluminum to copper terminations.

Features:
1) Aluminium barrel is filled by neutral grease and covered by cap.
2) Friction welded.
3) Material: CU≥99.9%, AL≥99.5%
4) We also can produce 2 holes or 3 holes,and also can Tinned on the copper plam or aluminium barrel



Item No. ر0.3 D±0.2 d±0.2 L±2 L1±2 W±0.2 S±0.2
DTL-2-10 10.5 14 5.5 80 42 20 3.0
DTL-2-16 10.5 16 6.5 80 42 20 3.0
DTL-2-25 10.5 16 7.5 80 42 20 3.0
DTL-2-35 10.5 16 8.5 80 42 20 3.0
DTL-2-50 12.8 20 9.8 90 43 25 4.5
DTL-2-70 12.8 20 11.5 90 43 25 4.5
DTL-2-95 12.8 20 13.5 90 43 25 4.5
DTL-2-120 12.8 25 15.0 114 60 30 5.5

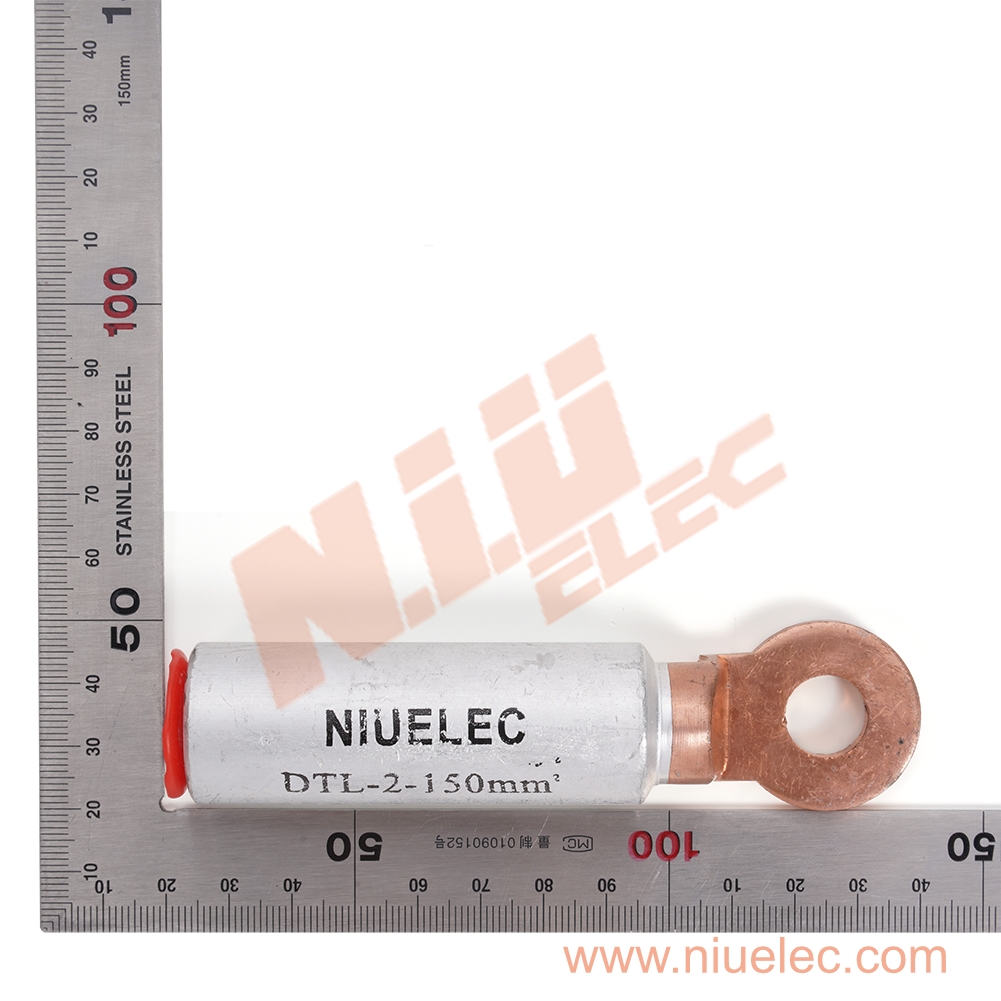

DTL-2-150 12.8 25 16.5 114 60 30 5.5
DTL-2-185 12.8 32 18.5 118 60 35 6.0
DTL-2-240 12.8 32 21.5 118 60 35 6.0
DTL-2-300 12.8 34 23.5 127 72 35 6.0
DTL-2-400 17.0 40 26.0 160 93 36 7.0
DTL-2-500 17.0 47 29.5 160 94 36 7.0
DTL-2-630 17.0 47 32.5 180 94 50 9.0
